CP Camaro

If you’re looking for information on the OversteerGarage.com Camaro you’ve come to the right spot! This car had humble beginnings, but has evolved into one of the top cars in the class.

2015 CP Camaro Front Quarter

Chassis:

  • 1979 Chevrolet Camaro
  • Roll Cage and subframe connectors
  • Mini wheel tubs
  • Kirkey seat
  • Race Technology Video4+GPS Data Acquisition
  • Front Splitter
  • Rear Spoiler
  • Lexan windows
  • Harwood fiberglass front nose
  • Rear flares from Showcars Body Parts
  • 2700 lb race weight
  • 50/50 weight distribution

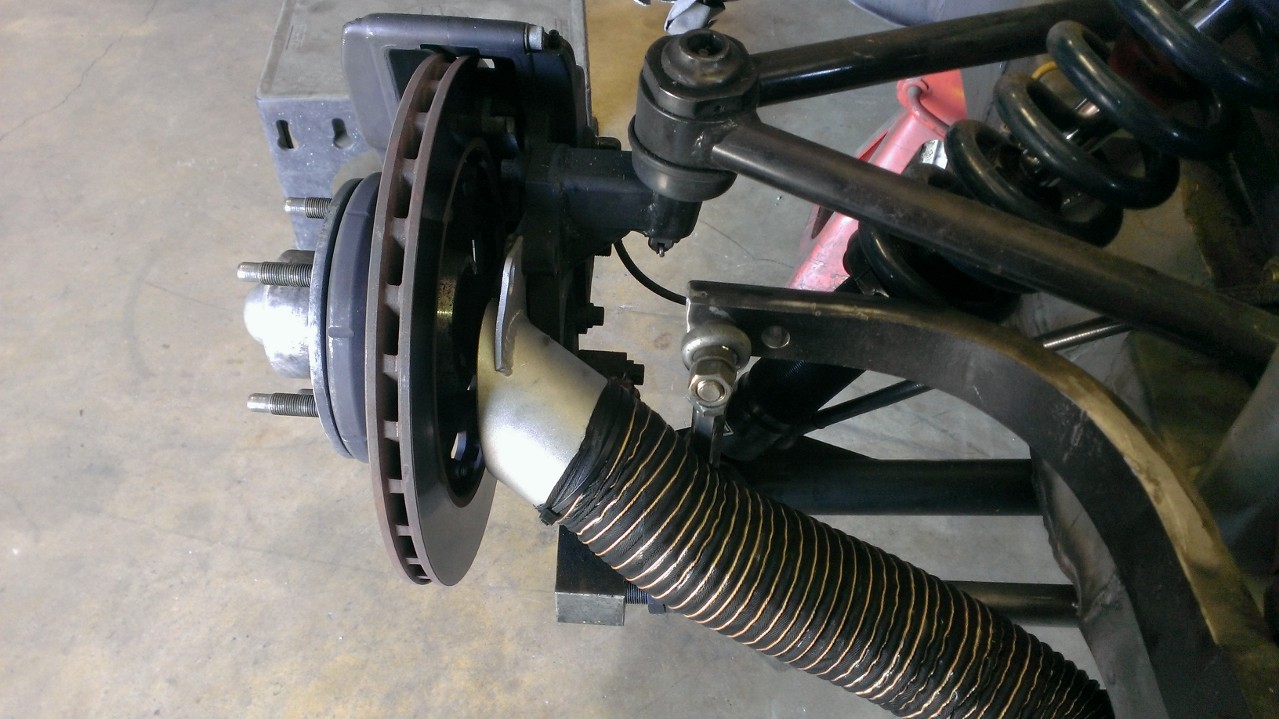

camaro front suspension

Front Suspension:

  • Modified Factory Front Subframe with Double-Arm Coilover Suspension, custom zero-scrub geometry
  • Custom valved AST double adjustable coil-over shocks by HVT
  • Speedway splined sway bar
  • Coleman Racing Spindles
  • Coleman aluminum 5×5 wheel hubs
  • Wildwood Supervise 4 piston brakes
  • Carbotech Brake Pads
  • Appleton Steering Rack
  • 16×12″ Real Racing Wheels with Goodyear Racing Radial Slicks

cp camaro engine 2

Engine:

  • 310 c.i. Small Block Chevy, originally built by Pierce Engineering, refreshed by HK Racing Engines
  • 4-bolt Main block, 4″ bore
  • Forged Crank, 3″ stroke
  • Solid-Roller Camshaft
  • Ported AFR Cylinder Heads
  • Jesel shaft-mount rocker arms
  • Victor Jr. Intake
  • 650 cfm 4-barrel Holley Carb
  • Mid-500 HP with an 8,000 RPM redline

Transmission:

  • Muncie M21 built by Darrell’s Gear Box
  • Triple Disc Tilton Clutch
  • Modified shifter for relocated driver seat

Exhaust:

  • Schoenfeld 180 Degree Headers (which give it a unique sound!)
  • Howe Racing Muffler and Y-Pipe

new camaro rear axle

Rear Suspension and Axle:

  • 3-Link with Watts Link
  • Ford 9″ with Strange Housing and Truetrac Differential
  • Tiger Cambered Housing Snouts
  • Howe Racing aluminum 5×5 hubs
  • Quarter Master drive flanges
  • JRi custom valve coil-over shocks by HVT
  • Adjustable Speedway splined sway bar
  • 16×13 Real Racing Wheels with Goodyear Racing Radial Slicks

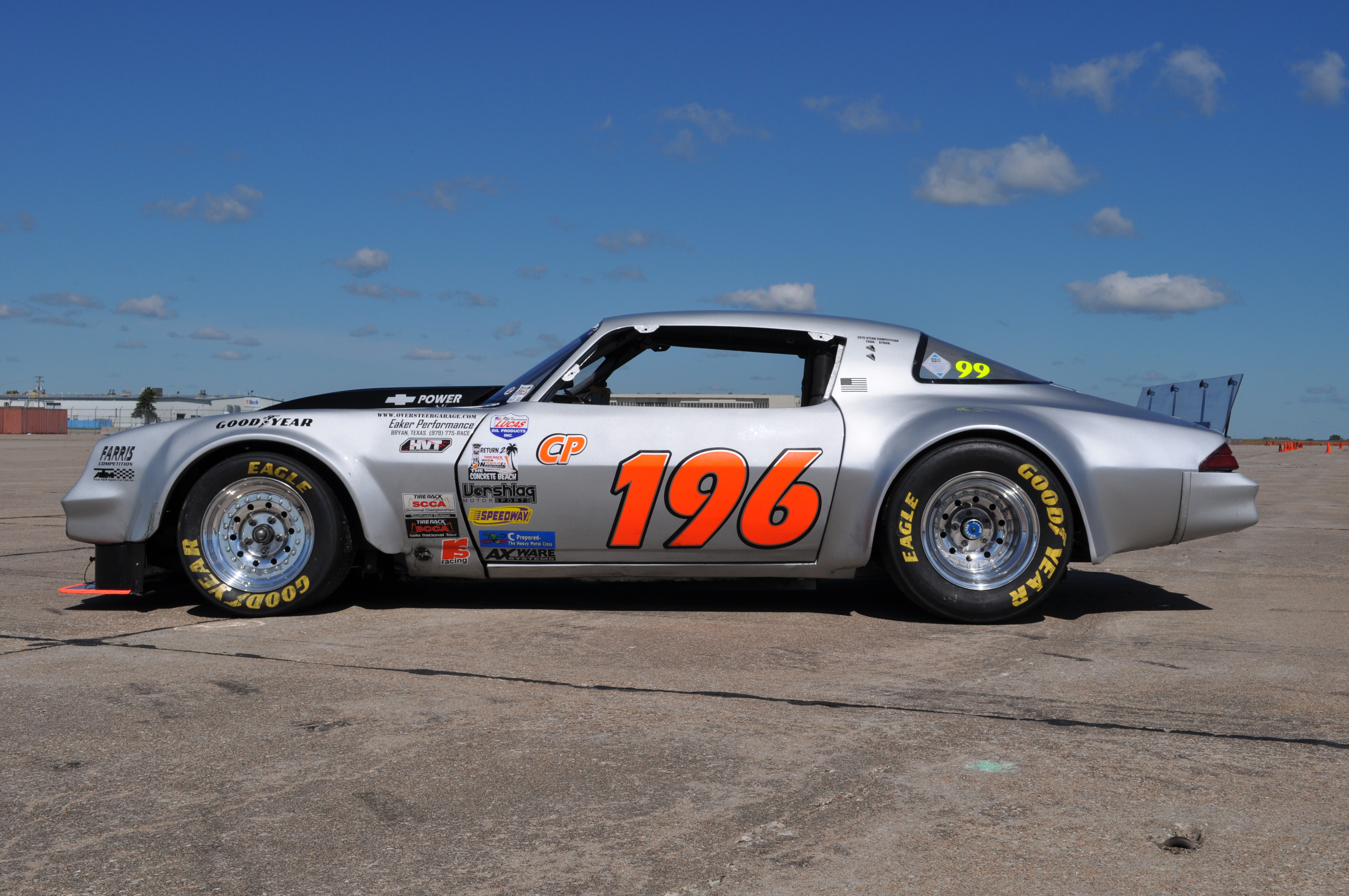

2015 cp camaro side

2015 cp camaro rear

2015 cp camaro rear quarter

2015 cp camaro front

Results History:
